Planetary gears
IMS.250 Drive LN
Our planetary gear from the Drive Series is customized for the special requirements of wheel drives. Due to its helical gearing it also meets increased demands on low noise performance.
Low Noise (LN)
Due to the use of helical gearing in the first stage particularly low noise.
Compact Overall Length
No space? No problem! The compact design of our Drive Series makes it possible.
Long Service Life
Persistent and reliable: planetary gears that keep their promises.
Maximum Power Density
Little space and great performance - with our Drive Series this is no contradiction.
Temperature
Also ideally suited for demanding temperature ranges from -30° to +60°C.
Technical data
| Parameter | 2-stage | Notes |
|---|---|---|
| Reductions | 28:1 34:1 45:1 58:1 | Other ratios available on request |
| Nominal Torque | 12
Nm
| |
| Acceleration torque | 25.0 Nm | Time part 20 % during gearbox lifetime |
| Emergency stop torque | 54.0 Nm | max. 50,000 cycles during gearbox lifetime |
| Recommended wheel Ø | 160 mm | Specification point of data sheet is wheel-Ø160mm |
| Load capacity per drive | 100 kg | Weight to be moved max. 250 kg per drive |
| Axial force | 680,0 N | Time part 30 % during gearbox lifetime |
| Nominal speed vehicle | 1,5 m/s | Specification point of data sheet is wheel-Ø160mm |
| Recommended input speed | 3.000 rpm | |
| Max. Input speed | 5.000 rpm | |
| Protection class | IP54 | Higher protection classes available on request |
| Weight | 2.5 kg |

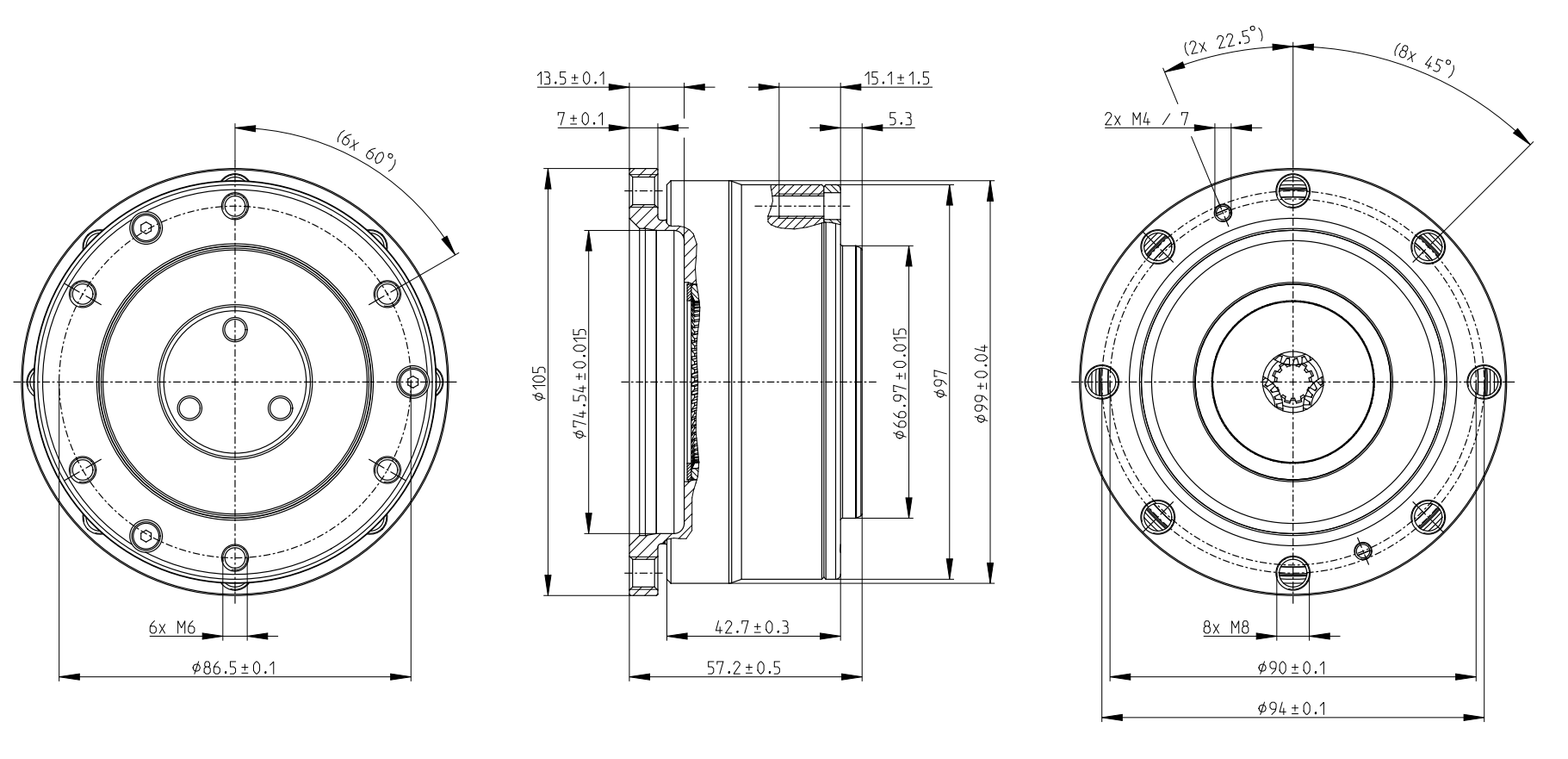

All dimensions in millimetres [mm]
All dimensions in millimetres [mm]
